Check Smoothing Groups Incompatibility

alt text

About

Looks for edges that trigger the Maya-SG incompatible: sharp edge adjacents has same smoothing group warning on export. Such edges are incompatible for smoothing groups in X-Ray SDK 0.4 format. After operator’s work, problem objects will be selected. Each problem object will have problem edges highlighted. To remove the Maya-SG incompatible warning, you must unsharp these problem edges (Ctrl+E > Clear Sharp). The Maya-SG incompatible warning appears if the sharp edges (Ctrl+E > Mark Sharp) have open contours. An example of an open contour is a sphere that has one unsharp edge

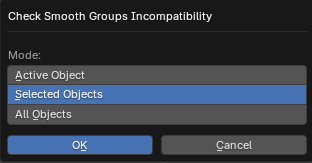

Mode

  • Active Object - Active object
  • Selected Objects - Selected objects
  • All Objects - All objects from blend-file

Sources

Blender X-Ray Addon Wiki on GitHub
