ImGui

Basics

Dear ImGui is a bloat-free graphical user interface library for C++.
It outputs optimized vertex buffers that you can render anytime in your 3D-pipeline-enabled application.
It is fast, portable, renderer agnostic, and self-contained (no external dependencies).

This guide explains how to use Anomaly’s ImGui implementation (currently available only with Modded Exes), which can be used in Lua scripts.

By default pressing F11 will show the ImGui overlay (a menu bar at the top of the screen).
The keybind can be changed in the settings.

When the ImGui overlay is shown, the mouse cursor will change and the game will no longer react to any input.

Pressing Esc or F11 will hide it again - you can also transfer the input back to the game without closing the overlay by double clicking anywhere outside of existing ImGui windows.
In this case, pressing F11 will bring the input back to the ImGui overlay.

Some resources to get you started on ImGui:

• Interactive ImGui Demo
• ImGui Debug Tools (accessible in-game from the About menu)

Differences between C++ and Lua ImGui implementations

Not every feature of ImGui has been ported (yet?), for example drawlists or custom images/textures are not supported at the moment.
I didn’t test every single function, it’s possible that there may be some oversights.

The main differences:

• ImGui. instead of ImGui::

• Some functions return multiple values, so the following C++ code

  bool expanded = ImGui::Begin("My Test Window", &my_window_visible, 0)


  turns into

  expanded, my_window_visible = ImGui.Begin("My Test Window", my_window_visible, 0)


• ImGui.Text() and ImGui.TextUnformatted() do the same thing, use string.format() to format strings

• The InputText functions have their return values swapped

  multiline_text, changed = ImGui.InputTextMultiline("##Multiline", multiline_text, 500, vector2():set(500,500))
  -- vs. other functions
  changed, test_value = ImGui.DragFloat("Test", test_value, 0.01, 0, 10)


• Scripted ImGui uses XRay types (vector2, vector, vector4, fcolor)

Check lua_help_imgui.script for a full list of functions and enums.

ImGui Window

Let’s begin with a simple window

my_window_visible = true

function imgui_on_render(name)

	if name == "Main" then

		if my_window_visible then

			expanded, my_window_visible = ImGui.Begin("My Test Window", my_window_visible, 0)

			if expanded then

				ImGui.Text("This is my test window!")

			end

			ImGui.End()
		end
	end
end

function on_game_start()
	RegisterScriptCallback("imgui_on_render", imgui_on_render)
end

Pressing the triangle will contract the window - expanded will be false in the example above.
Closing the window will set my_window_visible to false.

When to call ImGui functions

The ImGui implementation adds a new script callback imgui_on_render. It has a single argument i.e. function imgui_on_render(name) which tells you the name of the UI that is being rendered at the moment.

The engine currently sends callbacks for rendering Main, MenuBar and MenuFile but you can also call the callback yourself with a custom name to allow other scripts to append to your menus or windows.

Main

The main ImGui render, this is where you want to draw your windows.

MenuBar

You can also add your own menus to the menu bar at the top of the screen like this:

function imgui_on_render(name)

	if name == "Main" then

	[...]

	elseif name == "MenuBar" then

		if ImGui.BeginMenu("My Menu") then
			clicked, my_window_visible = ImGui.MenuItem("My Cool Window", nil, my_window_visible, true)
			SendScriptCallback("imgui_on_render", "MyMenu")
			ImGui.EndMenu()
		end
	end
end

MenuFile

The File menu is the very first menu that shows up on the menu bar.
You can also append your menu items to this menu.

function imgui_on_render(name)

	[...]

	elseif name == "MenuFile" then
		_, my_window_visible = ImGui.MenuItem("My Cool Window", nil, my_window_visible, true)
	end
end

Any time, actually

In reality, you can draw ImGui UI whenever you want.
If you wanted to make a debug overlay that’s visible at all times, even without opening the ImGui overlay, just render your window inside a new function and use AddUniqueCall to have it run once per frame.

function window_overlay()

	expanded, _ = ImGui.Begin("My Overlay", true)

	if expanded then

		ImGui.Text("This is visible all the time!")

	end

	ImGui.End()
end

AddUniqueCall(window_overlay)

Other UI elements

Some more examples.

Buttons

if ImGui.Button("Do Something", vector2():set(80,22)) then do_something() end

Draggables

local test_value = 1
local test_vec = vector():set(0,0,0)

[...]

changed, test_value = ImGui.DragFloat("Test", test_value, 0.01, 0, 10)
if changed then [...] end

changed, test_vec = ImGui.DragFloat3("TestVec", test_vec, 1, -100, 100)
if changed then [...] end

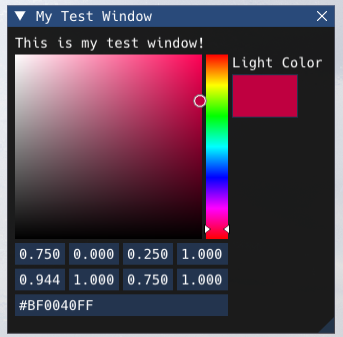

Color Picker

local my_color = fcolor():set(0.75,0,0.25,1)

[...]

changed, my_color = ImGui.ColorPicker4("Light Color", my_color)
if changed then test_light.color = my_color end

Text Input

local multiline_text = "input text here, пожалуйста"

[...]

multiline_text, changed = ImGui.InputTextMultiline("##Multiline", multiline_text, 500, vector2():set(250,200))
if changed then
	printf("newtext: %s", multiline_text)
end

Tree Nodes

if ImGui.TreeNode("Node Label") then

	ImGui.Text("Text inside node")

	ImGui.TreePop()
end

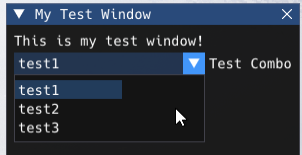

Combo Box

local selectables = {

	[1] = "test1",
	[2] = "test2",
	[3] = "test3",

}

local selected = 1

[...]

if ImGui.BeginCombo("Test Combo", selectables[selected]) then
	for i = 1, #selectables do
		if (ImGui.Selectable(selectables[i], i == selected, 0, vector2():set(100, 15))) then
			printf("Selected %s", selectables[i])
			selected = i
		end
	end
	ImGui.EndCombo()
end

Fonts

You can add custom fonts by putting .ttf or .otf files into gamedata\textures\fonts
Optionally, font configurations can be changed by adding a .ltx file with the same name into the fonts folder

Example font configuration to change the font size (fonts use sizepixels = 16 by default)

[font]
sizepixels = 19

If you want to adjust the built-in font, create a font config with the name $default.ltx
Or you could even replace the built-in font with a new one by adding a $default.ttf or $default.otf into the fonts folder.

Using different fonts

To use the font in your ImGui window, you’ll have to tell ImGui which font to use

ImGui.PushFont("Blackcraft")
ImGui.TextColored(fcolor():set(1,0,0.25,1), "Gobocore")
ImGui.PopFont()

Make sure to use PopFont once you’re done, this will make ImGui return to the default font

Icons

The default font also supports icons to enhance the look of your UIs

ImGui.BeginMenu(ImGui_Icon.WRENCH.." Hud Adjust")

Check imgui_helper.script for a full list of icons!

Styles and colors

Tweak ImGui styles and colors to your liking

ImGui.PushStyleColor(ImGuiCol.WindowBg, fcolor():set(0.04, 0.00, 0.05, 0.82))
ImGui.PushStyleColor(ImGuiCol.FrameBg, fcolor():set(0.48, 0.16, 0.43, 0.54))
ImGui.PushStyleColor(ImGuiCol.PopupBg, fcolor():set(0.61, 0.12, 0.41, 0.60))

ImGui.PushStyleVar(ImGuiStyleVar.WindowBorderSize, 0)
ImGui.PushStyleVar(ImGuiStyleVar.WindowPadding, vector2():set(20,20))

[draw your UI]

ImGui.PopStyleColor(3)
ImGui.PopStyleVar(2)

Gobo-bo!
