Actor Editor - Item Properties Window

About

alt text

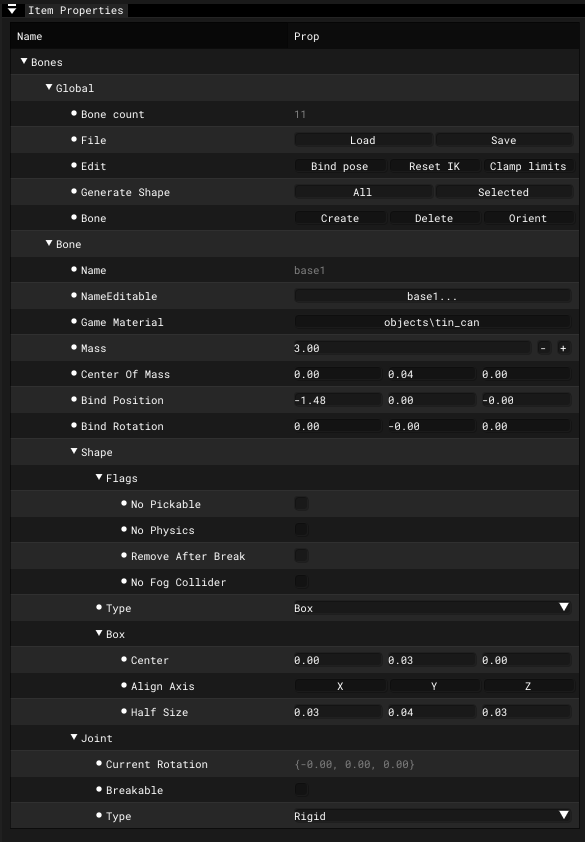

Group		Description	Extra	Description	Extra	Description
Global	Bone Count	Bone count	-	-	-	-
	File		Load	Load file	-	-
	File		Save	Save file	-	-
	Edit		Bind Pose	Resets the transformations of all bones	-	-
			Reset IK	Resets additional bone parameters to default values (IK parameters, bone game material, bone shape, mass and center of mass)	-	-
			Clamp Limits		-	-
	Generate Shape	Generates collisional shapes for skeletal bones based on mesh vertices	All	Generate collision shapes for all bones	-	-
	Generate Shape		Selected	Generate collision shapes for selected bones	-	-
	Bone		Create	Create new bone	-	-
			Delete	Delete selected bone	-	-
			Orient		-	-
Bone	Name	Bone name	-	-	-	-
	NameEditable	Editable bone name	-	-	-	-
	Game Material	Game material	-	-	-	-
	Mass	Bone mass	-	-	-	-
	Center Of Mass	Bone center of mass	-	-	-	-
	Bind Position	Bone bind position	-	-	-	-
	Bind Rotation	Bone bind rotation	-	-	-	-
	Shape		Flags		No Pickable	Excludes a bone from collision handling
					No Physics	Excludes physics processing for bone
					Remove After Break	Allows removal of bone after an object has been destroyed
					No Fog Collider	Bone won't interact with a voluminous smoke
			Type		Box
					Sphere
					Cylinder
	Joint		Current Rotation	Bone current rotation	-	-
			Breakable	Allows bone to be breakable	-	-
			Break Force	Threshold breaking force	-	-
			Break Torque	Threshold fracture torque	-	-
			Type	Joint type	Rigid	Rigid Joint
					Cloth	Cloth Joint
					Joint	Universal Joint
					Wheel [Steer-X/Roll-Z]	Wheel Joint
					Slider	Slider Joint
			Friction	Friction	-	-
			Spring Factor	Spring Factor	-	-
			Damping Factor	Damping Factor	-	-
			Limits		Axis X
					Axis Y
					Axis Z
			Steer		Limits Min
			Steer		Limits Max
			Slide (Axis Z)		-	-
			Rotate (Axis Z)		-	-

Group		Description	Extra	Extra Description
Global	Motion Count	Motion count	-	-
	Motion Reference	Adds Motion Reference	-	-
	Edit		Add	Adds selected animations to the list
			Del	Deletes the selected animation
			Save	Saves all or only selected animations to a *.skl file
	Export Import		Export	Export Motion Reference
	Export Import		Import	Import Motion Reference
Motion	Control	Animations control	Play	Play
			Stop	Stop
			Pause	Pause
	Frame		Start	Start frame
			Stop	Stop frame
			Length	Animation frame length
	Name	Animation name	-	-
	Speed	Animation speed	-	-
	Accrue	The speed at which the animation fades in (or blends in)	-	-
	Falloff	The speed at which the animation fades out (or blends out)	-	-
	Type FX		-	-
	Cycle		Bone Part	Part of the bones assigned to the animation
			Stop At End	Animation will stop at end
			No Mix	Animations will not mix
			Sync Part	Flag indicates that the animation should be synchronized with another animation
			UseFootSteps	Flag that helps the engine distinguish step animations from idle animations in order to properly apply inverse kinematics and manage transitions between states
			Move XForm	Root motion flag?
			Idle	Flag that helps the engine distinguish idle animations from moving (stepping) animations, in order to properly apply inverse kinematics and manage transitions between states
			UseWeaponBone
	FX		Start Bone	Type FX start bone
	FX		Power	Maximum animation intensity
	RootStartTransform		-	-
	RootEndTransform		-	-
Marks	Control-12		Add	Add Left1 and Right1 Motion Marks
	Control-12		Remove	Remove Left1 and Right1 Motion Marks
	Control-34		Add	Add Left1, Right1, Left2 and Right2 Motion Marks
	Control-34		Remove	Remove Left1, Right1, Left2 and Right2 Motion Marks

	Extra	Extra Description	Extra	Extra Description
Object Type	Static		-	-
	Dynamic		-	-
	HOM		-	-
	Multiply Usage		-	-
	Sound Occluder		-	-
Flags	Make Progressive	Only for Dynamic Object Type	-	-
	Disable Mesh Optimization	If not disabled, it optimizes the mesh by removing unnecessary edges and vertices, reallocating memory and updating linked data structures. Only for Dynamic Object Type	-	-
	HQ Geometry	Only for Dynamic Object Type	-	-
	Using LOD	Only for Multiply Usage Object Type	-	-
Transform	Position	Object position	-	-
	Rotation	Object rotation	-	-
	Scale	Object scale	-	-
	BBox Min	Object Bounding Box Min	-	-
	BBox Max	Object Bounding Box Max	-	-
LOD	Reference	LOD reference	-	-
	Action	Only for Multiply Usage Object Type	Make HQ
	Action	Only for Multiply Usage Object Type	Make LQ
Summary	Geometry		Object	Objects vertex and face count
	Geometry		Meshes	Meshes vertex and face count
	Game Options		User Data	User data

Button	Description
Name	Surface Name
Texture	Texture
Shader	Engine Shader
Compile	Compile Shader
Game Mtl	Game Material
2 Sided	Copies and inverts polygons so that the back side of the face is also visible when rendered
Face Count	Face Count
