Modified THM Editor by ValeroK

Info


Program Developer	i-love-kfc (Original Author) ValeroK
Described Version	1.1
Discussion Forum	Ap-pro forum topic

About

The THM Editor from i-love-kfc was taken as the basis, finalized and fixed. Allows you to work with .thm files.

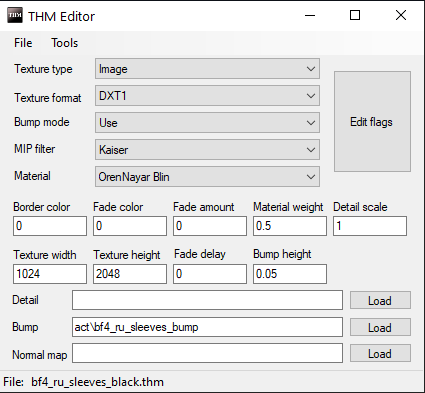

thm-editor-by-valerok centered

Features

Supports 99% of thm parameters

Functionality

Hotkeys

F4 - Open file
F5 or Ctrl+S - Save file
F6 - Save as

Buttons

File Button

Button	Description
Load	Loads the selected .thm
Save	Save .thm
Save As	Save as .thm
Exit	Exit

Tools Button

Button	Description
Import DDS Params	Adjust .thm to the texture format (texture format can be set incorrectly, so sometimes it is worth adjusting it manually)
Generate THM for texture	When you select a basic texture, the program creates a thm with basic properties for it (if a texture with the prefix _bump is found, the thm will set all the necessary flags for using bumps)

Edit flags

Checkbox	Description	Extra
Generate Mip Maps	Enables MIP-map generation
Has Alpha	Takes into account the alpha channel of the map
Binary Alpha	Alpha map will use 1 bit
Alpha Border
Color Border	In this mode, a color arbitrarily specified by the user is used for the area outside the texture coordinate range
Fade To Color	Fade to choosed color
Fade To Alpha	Fade to alpha
Dither Color	Enables Dither Coloring
Dither Each MIP Level	Enables Dither Coloring on each MIP level
Diffuse Detail	Detail Map texture will be used
Implicit Lighted
Detail Bump	Detail Map will use its own Bump Map

Texture type

Field	Description
Image	2D texture
Cube Map	Is a method of environment mapping that uses the six faces of a cube as the map shape
Bump Map	Bump Map
Normal Map	Normal Map
Terrain	Terrain Map

Texture compression formats

Field	Description
DXT1	Compression without alpha channel support
ADXT1	Compression with alpha channel support
DXT3
DXT5	Compression with alpha channel support
4444	aka `D3DFMT_A4R4G4B4` Color and alpha texture format, 4 bit per channel
1555	aka `D3DFMT_A1R5G5B5` A pixel occupies 16 bits (2 bytes) and contains color and transparency information in the following format: 5 bits for the red channel (R) 5 bits for the green channel (G) 5 bits for the blue channel (B) 1 bit for the alpha channel (A)
565	aka `D3DFMT_R5G6B5` Each pixel occupies 16 bits (or 2 bytes) and contains color information in the following distribution: 5 bits for the red channel (R) 6 bits for the green channel (G) 5 bits for the blue channel (B)
RGB	Compression without alpha channel support
RGBA	Compression with alpha channel support
NVHS	NVIDIA High Compression (NVidia Texture Format (GEForce 3))
NVHU	NVIDIA High-Quality Texture Compression (NVidia Texture Format)
A8	8-bit alpha only DirectX Format
L8	8-bit luminance only DirectX Format
A8L8	16-bit using 8 bits each for alpha and luminance DirectX Format

Bump Mode

Field	Description
None	None
Use	Use Bump mapping method
Use Parallax	Use Parallax mapping method

MIP Filter

Tip

Different algorithms of MIP-map filtering

Field	Description	Preview
Box	Simplest MIP-map generation algorithm. However, the box filter has a number of limitations that can be quite noticeable with certain textures. For example, if a texture contains very narrow features (e.g., lines), then aliasing artifacts may be very pronounced
Cubic	Generation with weighted sum of eight pixels. The advantage of the cubic filter over the box is that it can have negative side lobes (weights) which help maintain sharpness while reducing the image. This can help reduce some of the blurring effect of filtering with mipmaps
Point	(aka Nearest-neighbor interpolation) Uses only one pixel from the mipmap This is a simple and fast texture filtering method that works well in some cases, but can create visual artifacts and reduce image quality in more complex scenes.
Triangle
Quadratic	This method offers a balance between quality and performance It uses an interpolation method that is based on quadratic equations. Instead of just selecting one pixel (as in Point), this method considers three pixels - one from the selected mipmap level and the two closest to it - to greatly improve the smoothness of the transition of color values.
Advanced
Catrom
Mitchell
Gaussian
Sinc
Bessel
Hanning
Hamming
Blackman
Kaiser	Increase readability of textures by increasing sharpness and contrast

Material

Tip

Different shading algorithms

Field	Description
OrenNayar Blin	`Oren-Nayar shading` is a lighting model used in computer graphics to render matte (rough) surfaces with respect to their micro geometry. `Blinn shading` uses a combination of diffuse and specular light reflection to achieve a more realistic image of shiny objects.
Blinn Phong	`Blinn shading` uses a combination of diffuse and specular light reflection to achieve a more realistic image of shiny objects. `Phong shading` model can achieve good visual results, making objects appear more three-dimensional and realistic, but at the same time it cannot always accurately reproduce lighting effects on more complex or uneven surfaces.
Phong Metal	`Phong shading` model can achieve good visual results, making objects appear more three-dimensional and realistic, but at the same time it cannot always accurately reproduce lighting effects on more complex or uneven surfaces. `Metal shading` is focuses on the realization of materials imitating metallic surfaces.
Metal OrenNayar	`Metal shading` is focuses on the realization of materials imitating metallic surfaces. `Oren-Nayar shading` is a lighting model used in computer graphics to render matte (rough) surfaces with respect to their micro geometry.

Checkboxes

SOC format - SoC format of *.thm

Fields

Field	Description
Border Color
Fade Color
Fade Amount
Material Weight	Shading model weight (0.0 - 1.0)
Detail Scale	Detail Map Scale
Texture Width	Texture Width
Texture Height	Texture Height
Fade Delay
Bump Height	Bump Map Height
Detail name	Path to Detail Map
Bump name	Path to Bump Map
Normal Map name	Path to Normal Map

Sources

Source Code of Original THM Editor by i-love-kfc

Source Code of Modified THM Editor by ValeroK
