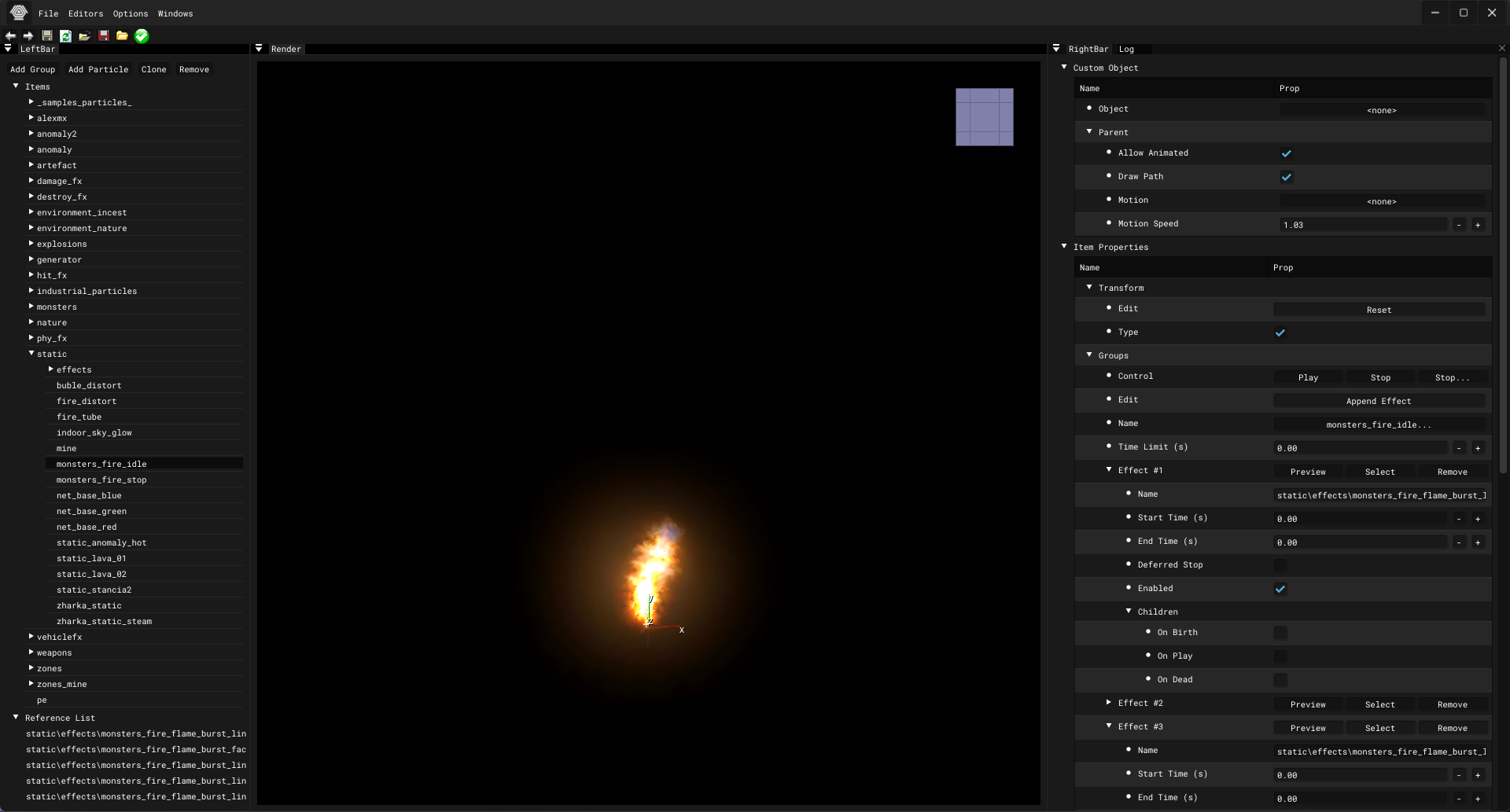

Particle Editor

About

Used to create particle effects (*.pe) or particle groups (*.pg).

alt text

Button	Description
Save	Save the particles in unpacked form(.pe,\.pg), in rawdata/particles
Reload	Reload particles from rawdata/particles
Save .xr	Save file .xr
Load .xr	Load file .xr
Validate	Validate particles
Compact	Checks database integrity, corrects paths to effects, and organizes storage structure

Option	1	Description
Image	Image Editor	Open Image Editor
Synchronize Textures	The function updates textures in the project by checking changes in the file system and synchronizing them
Check New Textures	Searches for new textures in the file system and imports them
Sounds	Sound Editor	Open Sound Editor
Synchronize Sounds (Soft)	Searches for new sounds in the file system and imports them. Deletes only those sounds that do not exist in the file system and are not used
Synchronize Sounds (Hard)	Searches for new sounds in the file system and imports them. Deletes all sounds missing from the file system without checking if they are used
Light Anim Editor	-	Open Light Animation Editor
Minimap Editor	-	Open Minimap Editor

Options	1	Description	1	Description
Render	Quality		-	-
Fill Mode	Fill Mode	Point	Vertex point fill mode
Wireframe	Wireframe fill mode
Solid	Solid fill mode
Shader Mode	Shader Mode	Flat	Flat Shading
Gouraud	Gouraud Shading
Edged Faces	Enables drawing of edges (wireframe) of a 3D mesh	-	-
RenderHW	Enables GPU rendering	-	-
Filter Linear	Enables linear texture filtering	-	-
Textures	Enables texture display (TODO Not Working)	-	-
Draw Safe Rect			-	-
Draw Grid	Draw viewport grid	-	-	-
Coordinate Axes	None	None	-	-
Axis		-	-
Cube		-	-
Fog	-		-	-
Mute Sounds	-	Mute Sounds	-	-
Real Time	-	Real Time	-	-
Stats	-	Displaying statistics	-	-
Preferences	-	Open Preference window	-	-

Button	Description
Log	Open Log window
Theme	Editor theme

Icon	Name	Description
	Undo	Undo the last action
	Redo	Repeat the last action
	Save	Save the particles in unpacked form(.pe,.pg), in rawdata/particles
	Reload	Reload particles from rawdata/particles
	Open	Open file .xr
	Save	Save file .xr
	Open	Open folder Gamedata
	Validate	Particle Validation
