Creating HOM Occluder in Blender


Authors

TheParaziT

Need to know


About

HOM occluders are essential for optimizing levels. They remove the geometry in the occluder.

Start

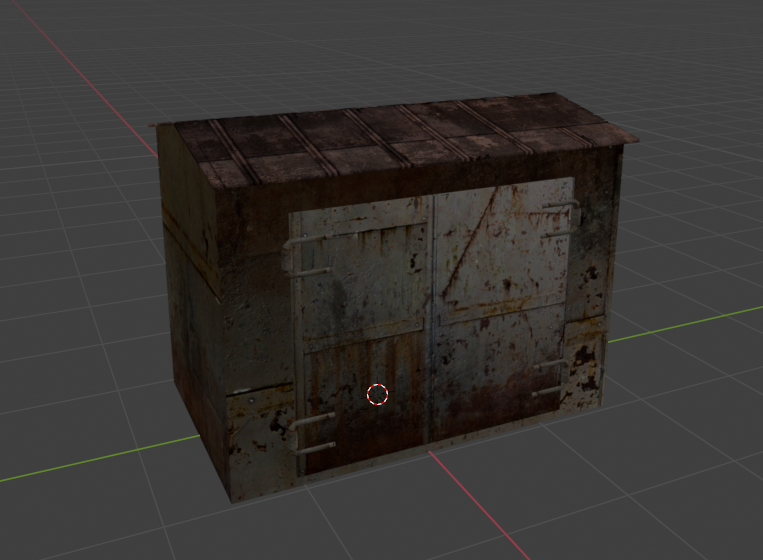

For the tutorial, the creation will be for Static Object, but HOM occluders can also be used for other purposes (e.g. for tall view bounders, hills, etc.). Let’s take this as an example:

Model Example centered

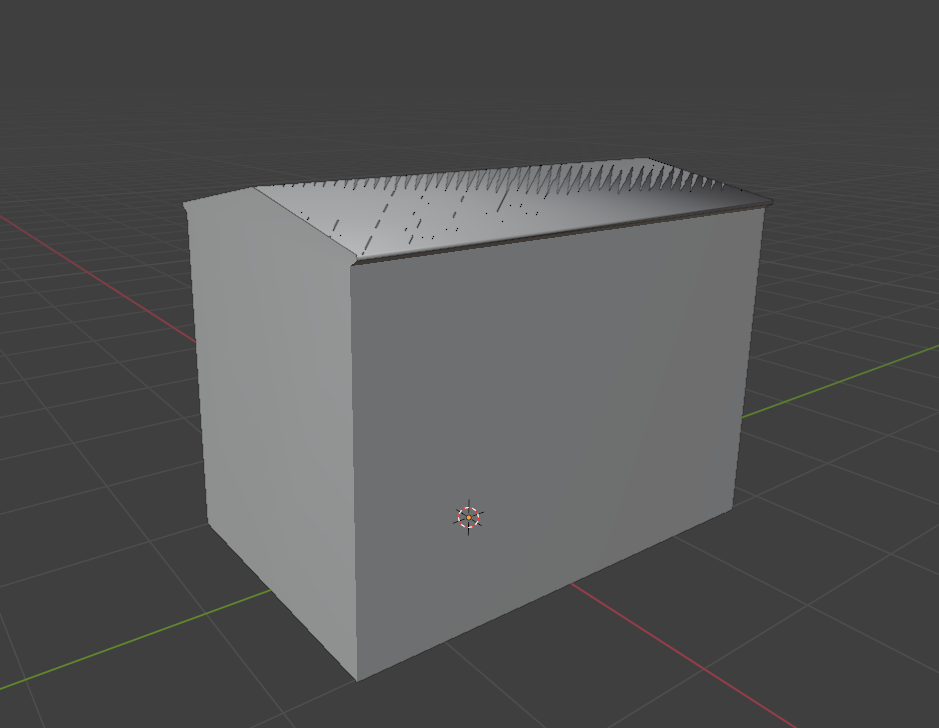

All we need to do is create a mesh that simplistically represents our model:

Model Result centered

Tip

You can simply duplicate your model, but remember that the fewer polygons and the better HOM Occluder represents your model, the better.

Surface

Go to Material PropertiesMaterial Properties svg-icon.

Create a separate material for our HOM occluder.

In X-Ray Engine: Material choose:

Shader

Any Engine Shader for Static Object (list of all Engine Shaders)

Compiler

Any Compiler Shader (list of all Compiler Shaders)

Material

Any Game Material (Example materials/occ - This material does not include rendering parameters that are unnecessary for the calculation) (list of all Game Materials)

Finish

Go to Object PropertiesObject Properties svg-icon.

In X-Ray Engine: Object select HOM in the Type list.

This completes the setup of the HOM Occluder. You can safely export it in the model format you need.
