Creating Ladder in Blender

Need to know

Creating a ladder with climbing ability in Blender.

Let’s create a ladder that can only be climbed from one side.

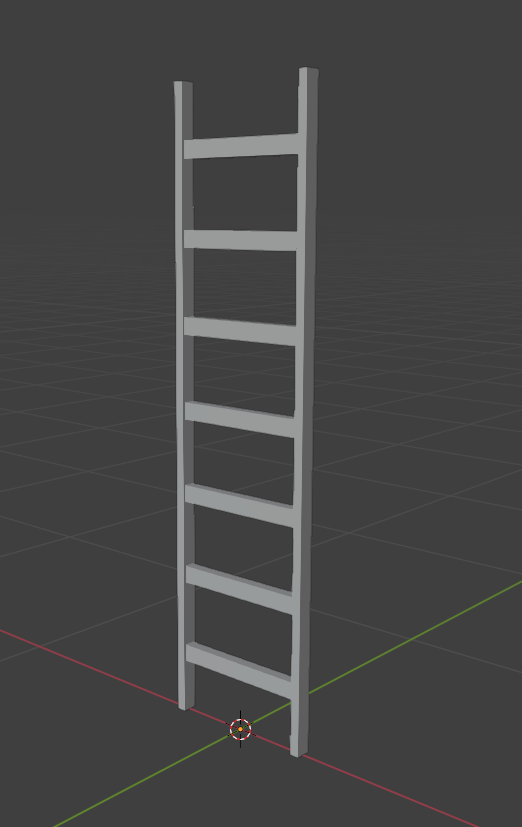

Here is an example of my ladder model.

alt text centered

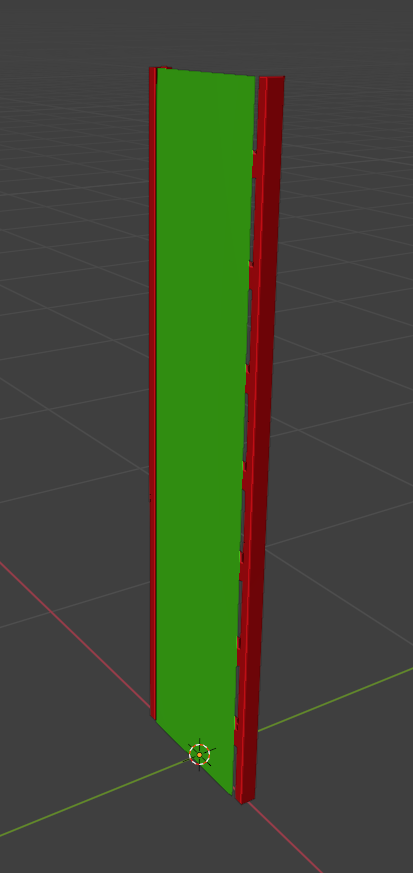

All we need to do is add a plane to the entire area where the climbing possibility will be available.

alt text centered

Note

Green color is the plane on which the player can climb.

Red - ladder model

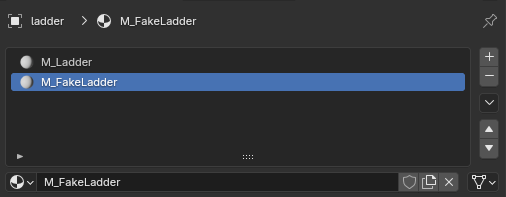

Go to Material Properties Material Properties svg-icon .

Create a separate material for our plane.

alt text centered

In X-Ray Engine: Material for plane (fake ladder) choose:

Shader — blah — (list of all Engine Shaders)
Compiler — blah — (list of all Compiler Shaders)
Material — materials/fake_ladder — This material has the Climable flag set, which means that this material is climbable (list of all Game Materials)

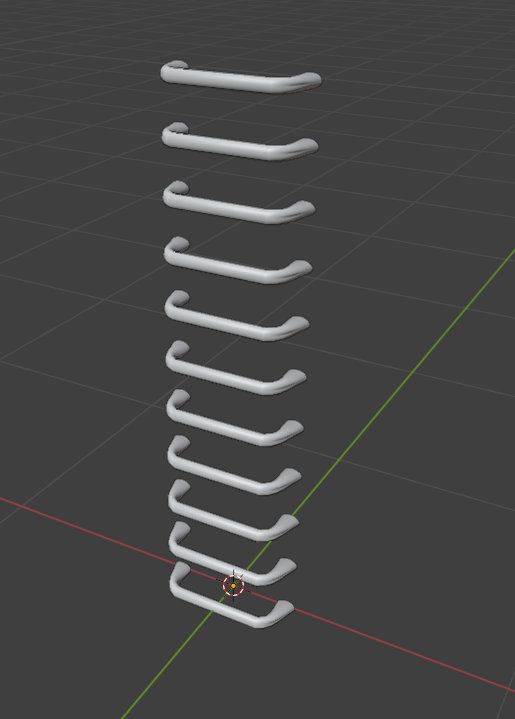

If your ladder doesn’t have a border where you can climb. For example, a ladder like this.

alt text centered

Then assign to ladder material the Game Material where the Climable flag is enabled (materials/fake_ladder as example).

Go to Object Properties Object Properties svg-icon .

In X-Ray Engine: Object select Static in the Type list.
